PLC Splitter

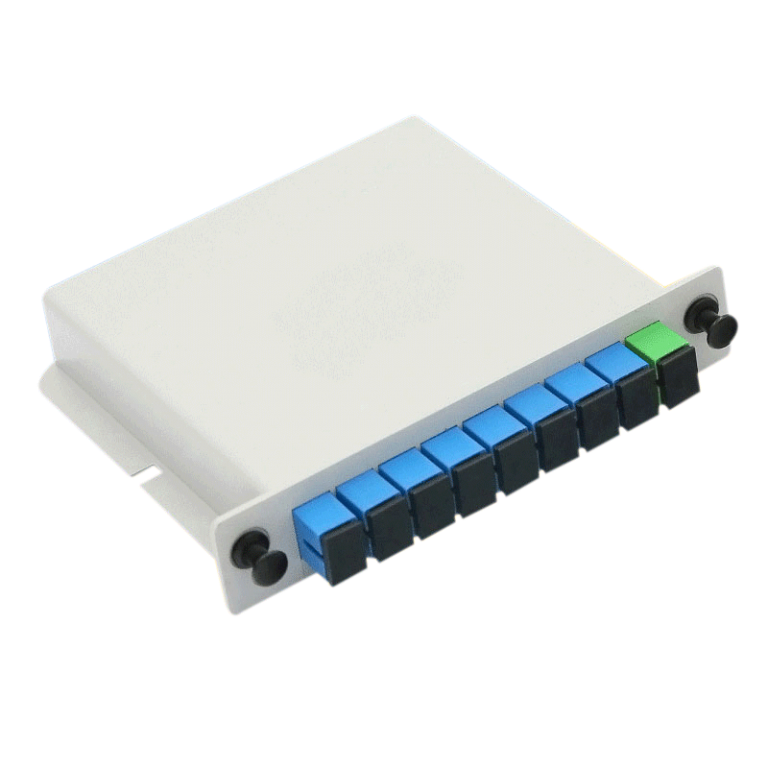

Optic Fiber Splitter 1X8 LGX Single Mode PLC with SC FC Connection is a 1×8 blockless plc splitter installed in LGX box. This Optic Fiber Splitter can be connecterized with SC FC LC fiber connectors with related fiber adapter ports.
PLC (Planar Lightwave Circuit) Splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. This PLC Splitter is a 1×8, with 1 input and 8 output fibers with an even split ratio across all fibers regardless of input wavelength. PLC Splitters are availble with 900µm loose tube singlemode fiber and terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization. Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
Categories:PLC Fiber Optic Splitters
Tag:1x8, FC, LC, LGX,
1X8 PLC Fiber Optic Splitter Features
  • High quality PLC design features a protective metal casing around the fibers
  • PLC splitting mechanism divides input signal into equal parts across all output fibers
  • 900µm loose tube fiber for easy stripping, splicing, or terminating
  • Also available pre-terminated with LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC
1X8 PLC Fiber Optic Splitter Application
  • FTTH, LAN, PON & Optical CATV
  • Local ring net, Optical fiber communication system
  • Optical fiber test equipment, Optical fiber sensor

1X8 PLC Fiber Optic Splitter Specification

PLC Splitter Type

1×8 PLC Splitter

Configuration Type

1×8

Connector Type

SC/APC,SC/UPC,LC FC ST

Fiber Length

1.5m

Package Style

LGX Module

Fiber Type

Singlemode G657A1 or G652D

Operating Bandwidth

1260~1650nm

Fiber Diameter

0.9mm,2.0mm,3.0mm

Typical Insertion Loss (≤) dB

10.2

Insertion Loss (≤) dB

10.7

Loss Uniformity (≤) dB

0.8

Polarization Dependent Loss (≤) dB

0.3

Wavelength Dependent Loss (≤) dB

0.3

Return Loss (≥) dB

50

Directivity (≥) dB

55

Temperature Dependent Loss (≤) dB

0.5

Max Temperature Dependent Loss (-40~85°C)

0.5

Operating Temperature (°C)

-40~85

Storage Temperature (°C)

-40~85

Sealing Package Dimension (mm)

130*100*25
