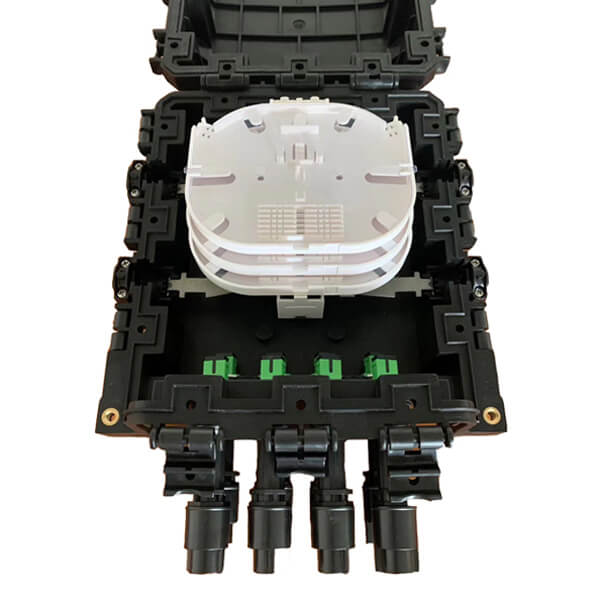

FLK-AFAT-328 Aerial Fiber Terminal Closure is specially designed to protect splicing joints of drop cable termination. The fiber terminal closure allows 8pcs drop cable with fast connector as output ports. Each splice tray is 12 fibers capacity, and the termination box can hold 3 splice trays for up to 36 fibers splicing. The fiber splice closure adopts modified PP material, with anti-UV, anti-aging and corrosion resistance material. The optical enclosure can splice and connect the optical fibers in aerial, manhole, pole or wall mounted.

Description
Item No.: FLK-AFAT-328
Dimension: 248×276×125mm
Body material: Modified P.P
Entry cable ports: 4 ports (2 Inlets + 2 Outlets)
Entry cable diameter: Φ8-12mm
Drop cable ports: 8 ports SC Pre-terminated Drop Cable
Adapter number: 8xSC SX Adapters
Splice Tray: 3×12 Cores tray
Max. Splicing Capacity: 36 fibers
PLC Splitter (optional): 2pc 1*4 or 1pcs 1*8 micro PLC splitter

Sealing Structure: Mechanical Sealing and Clip lock

Feature
1.IP Protection Grade: IP65
2.The closure used for drop cables with Fast connector.
3.Max hold 8pcs SC simplex adapters
4.Available for 2pc 1:4 or 1 pcs 1:8 micro PLC splitter optional
5.Seal with silicon rubber ring at the closure body and entry ports.
6.Adopt plastic clip lock for easy reopen and maintenance
7.Reliable sealing performance, convenient for repeated use
8.Applicable for aerial, buried, pole or wall mount installation
