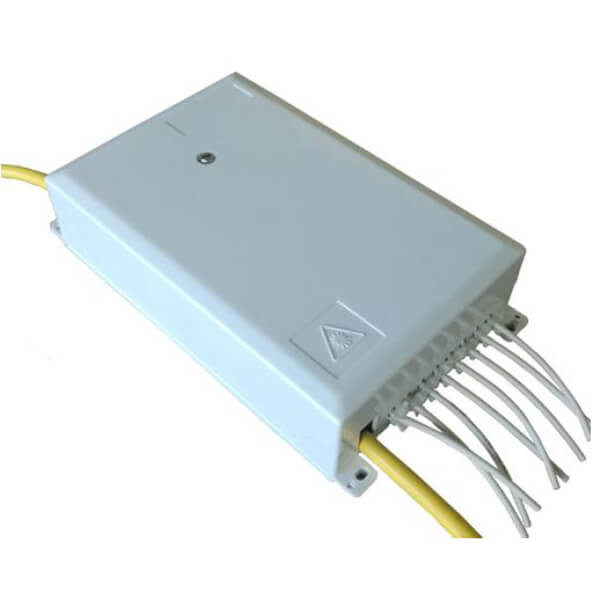

New NAP 8xSC Fiber optic terminal box is designed for the FTTx project and provide mechanical protection for fiber management system that include the functions of patching, splicing and passive optic components integration. This fiber optic distribution box is typically used with 1×4 or 1×8 Micro PLC Splitter & mounted with SC or LC Fiber adapter for FTTx access networks. It is the special type Fiber optic splitter terminal box, it support wall mount installation, be made of high impact plastic.

Description
Part No.: FLK-FAT-208D
Dimension: 212×126×50mm
Cable ports: 2 Input & 2 Output
Input Cable diameter: φ10.0mm
Output ports & Cable diameter: 8×φ5mm, or figure 8 cables
Adapter Type: 8xSC
No. Of Splice trays: 2pcs
Splicing Capacity of each tray: 12 FO
Micro Splitter: 1×4 or 1×8 Micro splitter optional

Mounting Type: Wall mount

Feature
· Made of Brand new plastic LSZH.

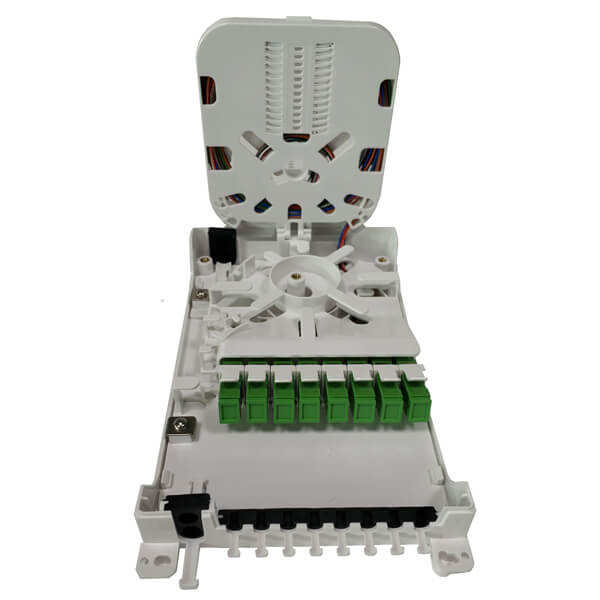

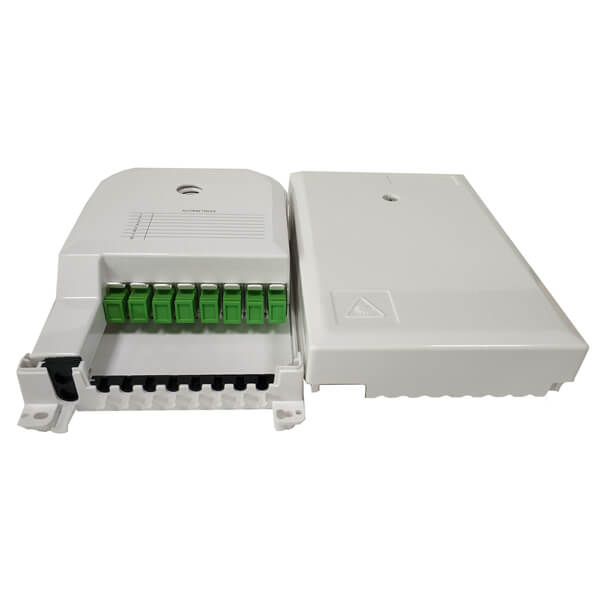

· Double protection-the first cover protect the customer area and the secondary cover to protect splice area.
· Clear fiber function area division and clear fiber routing.
· Special slot for Micro PLC Splitter 1×4 or 1×8 in splice tray.
· Splice tray can hold on 120 degree when wall-mounted and full load.
· Adaptor holders can be lifted a little and make the installation easy.
